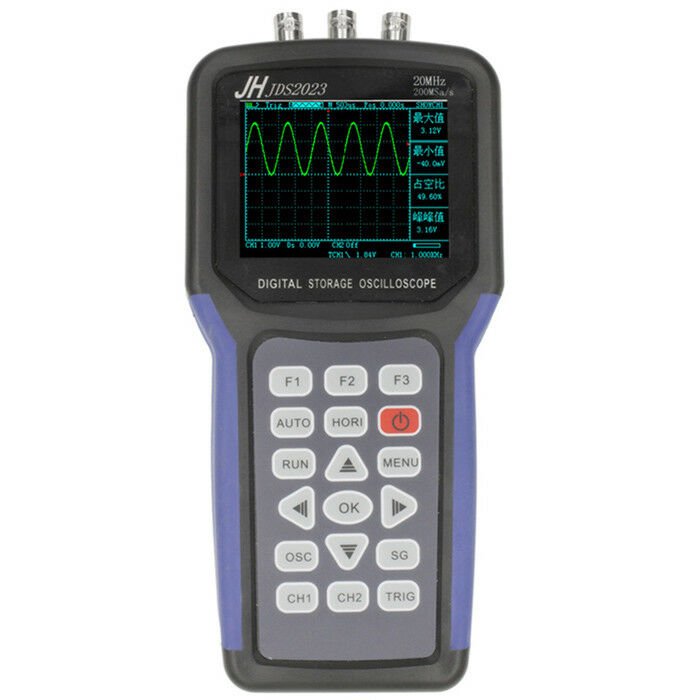

JDS2023 Digital Storage Handheld Oscilloscope 1 Channels 20MHz Oscilloscope AC/D

≡ Show Menu JDS2023 Digital Storage Handheld Oscilloscope 1 Channels 20MHz Oscilloscope AC/D Description Item Description JDS2023 Digital Storage Handheld Oscilloscope 1 Channels 20MHz Oscilloscope AC/DC Input Coupling with Signal Generator Function Description: It is an electronic tool used to graphically depict sound waves and environmental frequencies. This tool is helpful in a number of different applications. Some of the most common include music, particularly radio frequencies and digital music remastering, but it can also be helpful in certain circuitry and engineering scenarios and in doing things like measuring seismic activity and certain other sounds in nature. Features: ● With signal generator function ● 200MSa/s sample rate and 20MHz bandwidth ● 3.2 inch color TFT LCD, 320 x 240 pixels ● You could switch menu language between English and Chinese ● Powered by 1 x 3000mAh 18650 Li-ion battery (not included) Oscilloscope Function: Input Input coupling: AC,DC Channel: 1 Display mode: Y-T The input impedance: 1MΩ 25pF The maximum input voltage: 40V(Probe X1);400V(Probe X1);2000V(Probe X100) Probe attenuation: 1X,10X Attenuation setting: 1X,10X,100X Signal acquisition system Sampling method: Real time sampling, random sampling The storage depth: 2K Acquisition mode: Sampling, peak detect Vertical system Vertical sensitivity: 10mV-5V(Probe 1X) 100mV-50V(Probe 10X) (1,2.5,5 Stepping) The vertical accuracy: +/-3% The vertical resolution: 8bit Bandwidth: 20MHz Horizontal system The real-time sampling rate: 200 MSa/s Horizontal scanning range: 10nS/div-5S/div Triggering system Trigger Mode: Automatic, normal and single Trigger Type: The rising edge, falling edge Automatic detection: Support(50Hz-40MHz) Measurement system Cursor measurement: Support time and voltage Measuring method: Manual Measurement: The peak to peak value and frequency Equipment Screen: 3.2 inch,16 bit true color,TFT,320*240 Battery: 2000+mA Lithium battery (support 5 hours of continuous work) Size: 202 x 100 x 35mm Package weight: 1.130 kg Digital channel: 200 MSa/s Signal Generator: Frequency range: sine 1Hz - 5MHz, other waveforms 1Hz - 1MHz Duty ratio: 0 - 100 percent Amplitude: 100mV - 4V Offset: +(0V -2V) Package included: 1 x JDS2023 Digital Storage Handheld Oscilloscope 1 x Charger 1 x USB Cable 1 x Probe 1 x CD Feedbacks from buyers Feedback From Buyer/price When Gold seller During past month -- -- Private thank you for these great goggles During past month -- -- Private An excellent transaction. Thank you l During past month SNAP-ON- E796CG NEEDLE NOSE PLIERS 7" INCH (#) US $28.00 As described! Thank you! super fast delivery During past month -- -- Private As described! Thank you! During past month Effetool EAS System 15000GS Universal Detacher EAS Security Detacher (#) US $96.50 Just as described During past month SNAP ON #3 PHILLIPS 10 3/4",27 C.M L RED-BLACK SOFT GRIP SCREWDRIVER SGDP631RA (#) US $38.00 Pleasure doing Business! During past month -- -- Private great item During past month Daniels Removal Tool Blue DRK16A-P/N:M81969/19-08 (#) US $26.00 Buena calidad a buen precio funciona 100% During past month -- -- Private Excellent eCRATERer, would use again. During past month -- -- Private GOOD eCRATERER During past month -- -- Private at no point did your site say that the pi 3 was not included with item During past month Raspberry Pi 3 Display Kit Set Includes 7 Touchscreen Power Supply Official Case (#) US $112.73 Alles super, gerne wieder
